Reverse Challenge - Silent Lock
This challenge was done by Ploxied. You can find it here, please give a try. Thanks to Ploxied for creating the challenge.
Weird functions
I found these interesting, I had to use Intel’s documentation to find these, none of them are C functions. It seems like these were added using inline assembly or importing their specific header file that implements them in C.
_mm_cmpgt_epi8: Compare packed signed 8-bit integers in a and b for greater-than, and store the results in dst.1 2 3 4
__m128i _mm_cmpgt_epi8 (__m128i a, __m128i b) #include <emmintrin.h> Instruction: pcmpgtb xmm, xmm CPUID Flags: SSE2
_mm_unpacklo_epi8: Unpack and interleave 8-bit integers from the low half of a and b, and store the results in dst.1 2 3 4
__m128i _mm_unpacklo_epi8 (__m128i a, __m128i b) #include <emmintrin.h> Instruction: punpcklbw xmm, xmm CPUID Flags: SSE2
_mm_unpackhi_epi8: Unpack and interleave 8-bit integers from the high half of a and b, and store the results in dst.1 2 3 4
__m128i _mm_unpackhi_epi8 (__m128i a, __m128i b) #include <emmintrin.h> Instruction: punpckhbw xmm, xmm CPUID Flags: SSE2
_mm_cmpgt_epi16: Compare packed signed 16-bit integers in a and b for greater-than, and store the results in dst.1 2 3 4
__m128i _mm_cmpgt_epi16 (__m128i a, __m128i b) #include <emmintrin.h> Instruction: pcmpgtw xmm, xmm CPUID Flags: SSE2
_mm_unpackhi_epi16: Unpack and interleave 16-bit integers from the high half of a and b, and store the results in dst.1 2 3 4
__m128i _mm_unpackhi_epi16 (__m128i a, __m128i b) #include <emmintrin.h> Instruction: punpckhwd xmm, xmm CPUID Flags: SSE2
__paddd_xmmdq_memdq: This one seems to bePADDin the assembly instructions.
This instruction adds the dwords of the source to the dwords of the destination and writes the results to the MMX register. When the result is too large to be represented in a packed dword (overflow), the result wraps around and the lower 32 bits are writen to the destination register. https://asm.inightmare.org/opcodelst/index.php?op=PADDD
_mm_add_epi32: Add packed 32-bit integers in a and b, and store the results in dst.1 2 3 4
__m128i _mm_add_epi32 (__m128i a, __m128i b) #include <emmintrin.h> Instruction: paddd xmm, xmm CPUID Flags: SSE2
_mm_unpacklo_epi16: Unpack and interleave 16-bit integers from the low half of a and b, and store the results in dst.1 2 3 4
__m128i _mm_unpacklo_epi16 (__m128i a, __m128i b) #include <emmintrin.h> Instruction: punpcklwd xmm, xmm CPUID Flags: SSE2
_mm_bsrli_si128: Shift a right by imm8 bytes while shifting in zeros, and store the results in dst.1 2 3 4
__m128i _mm_bsrli_si128 (__m128i a, int imm8) #include <emmintrin.h> Instruction: psrldq xmm, imm8 CPUID Flags: SSE2

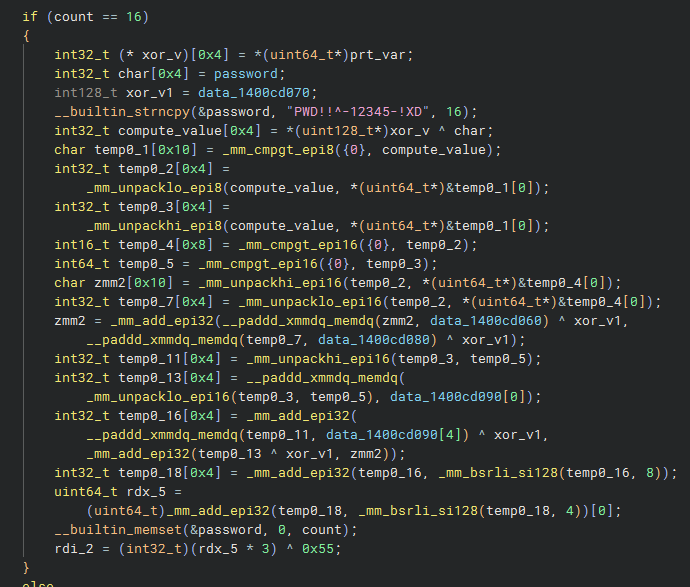

The use of these functions gives us the following Pseudo C code:
This big if statement is doing some transformations on the string PWD!!^-12345-!XD. The functions are used for transformations.

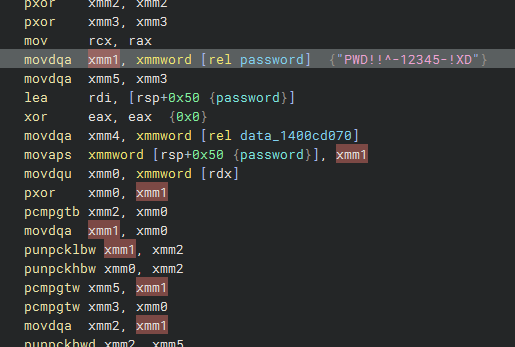

The string looks funny, so it catches my attention and I see it is being used a lot in the transformation. In this dissasembly snippet we can see that the string is moved into xmm1 using movdqa. This is later used alongside xmm0 to xor and store the result in xmm0.
The whole if only runs if the count is equal to 16, this is the same length as the string PWD!!^-12345-!XD.
In the main function, this variable is later filled with zeros, most likely because it is trying to stop you from extracting the decrypted strings at runtime.
1
__builtin_memset(&password, 0, 0x10);
In the function 0x1400017c0 that contains the main logic behind the encryption also takes strings that have a length of 27, and 8.
Anti Debugging
IsDebuggerPresent() & ud2
The challenge also mentions that some anti debugging tricks will be used. The most common and well known example is the function IsDebuggerPresent(), even if it’s your first time learning about this function you could probably guess what this is meant to do.
In this code snippet
1
2
3
4
if (!IsDebuggerPresent())
return (uint64_t)return_val;
trap(6);
If no debugger is present then it returns one of the values that was computed in this function and continues with the intended workflow for the binary, if there is a debugger present then it calls the function trap(6).
This is the ud2 assembly instruction.
UD2 is an x86 assembly instruction that simulates an invalid opcode and mostly used for testing purposes, but not only. Indeed it can be used by malware authors for example to disturbe the decompilation process of the malware.
SetUnhandledExceptionFilter()
There’s also this other function, that is used in this code snippet.
After calling this function, if an exception occurs in a process that is not being debugged, and the exception makes it to the unhandled exception filter, that filter will call the exception filter function specified by the
lpTopLevelExceptionFilterparameter.
1
2
3
4
5
6
7
8
9
10
11
12
sub rsp, 0x28
lea rcx, [rel sub_140001700]
call qword [rel SetUnhandledExceptionFilter]
call qword [rel IsDebuggerPresent]
test eax, eax
je 0x14000172d
ud2
Does not return
add rsp, 0x28
retn __return_addr
The second instruction lea rcx, [rel sub_140001700], is just a way to obfuscate the value of 0xffffffff. The function just returns the value.
1
2
mov eax, 0xffffffff
retn __return_addr
And then calls the function SetUnhandledExceptionFilter with the value.
1
2
call qword [rel SetUnhandledExceptionFilter]
call qword [rel IsDebuggerPresent]
Return from
UnhandledExceptionFilterand continue execution from the point of the exception. Note that the filter function is free to modify the continuation state by modifying the exception information supplied through itsLPEXCEPTION_POINTERSparameter.
Links
Thanks for the help with these topics
